Powerful
HAMMER MILL
Fine Grinding , Maximum Purity
Perfect for All types of Masalas
and Grinds
Hammer Mill
The Tiles Adhesive Mixer Machine is designed for efficient and uniform mixing of tile adhesive, dry mortar, and construction materials. Built with high-quality components, it ensures strong performance, durability, and consistent mixing results.
Equipped with an advanced mixing mechanism, the machine delivers a homogeneous blend with minimal effort and low power consumption. Its robust and user-friendly design makes it easy to operate and maintain—ideal for construction sites and industrial use.
Key Features
- Heavy-duty and durable construction
- Uniform and fast mixing performance
- Low power consumption
- Easy to operate and maintain
- Suitable for continuous use
Applications
- Tile adhesive mixing
- Dry mortar and cement mixing
- Construction and building material processing
Hammer Mill

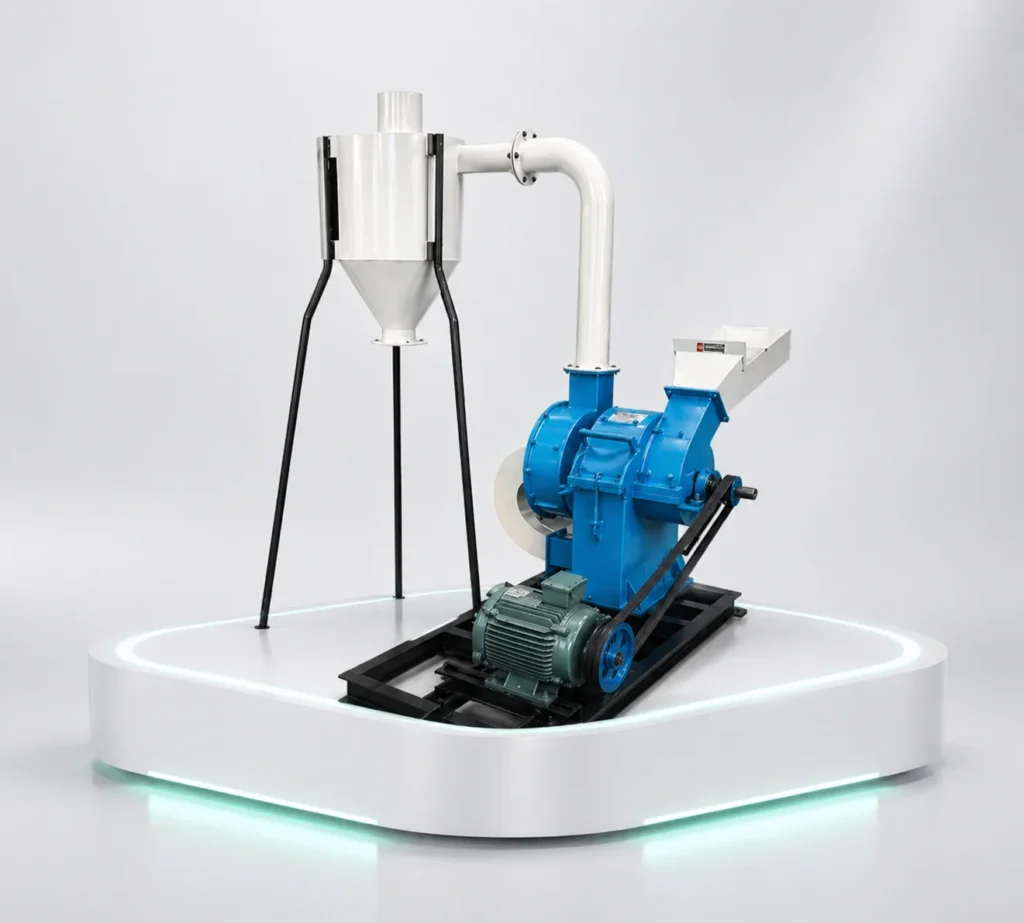

The Hammer Mill is a versatile grinding machine designed for crushing and pulverizing various materials into fine or coarse particles. It operates using high-speed rotating hammers that efficiently break down materials with precision and consistency.
Built with robust construction and high-quality components, the machine ensures durability, reliable performance, and long service life. Its efficient grinding system delivers uniform output with low energy consumption, making it suitable for continuous industrial use.
Key Features
- High-speed hammer mechanism for efficient grinding
- Durable and heavy-duty construction
- Adjustable output size
- Low power consumption
- Easy to operate and maintain
Applications
- Grinding grains and animal feed
- Crushing agricultural and biomass materials
- Spice and herbal processing
- Industrial and chemical applications
Why Choose This Machine ?
Technical Specifications
| First Chamber | Second Chamber | Required HP | Production Per Hour | RPM | Material | Space Required |
|---|---|---|---|---|---|---|
| 6" x 08" | 6" x 10" | 05 HP | 30 – 50 Kg | 2880 | M.S & S.S – 304 | 5' x 5' x 7' |
| 6" x 08" | 6" x 12" | 7.5 HP | 40 – 60 Kg | 2880 | M.S & S.S – 304 | 5' x 5' x 7' |
| 6" x 10" | 6" x 14" | 10 HP | 80 – 100 Kg | 2880 | M.S & S.S – 304 | 5' x 5' x 7' |
| 6" x 10" | 6" x 16" | 15 HP | 100 – 120 Kg | 2880 | M.S & S.S – 304 | 5' x 5' x 7' |
| 6" x 10" | 8" x 16" | 20 HP | 120 – 135 Kg | 2880 | M.S & S.S – 304 | 6' x 6' x 8' |
| 6" x 10" | 10" x 18" | 25 HP | 125 – 140 Kg | 2880 | M.S & S.S – 304 | 6' x 6' x 8' |
| 8" x 10" | 10" x 20" | 30 HP | 200 – 300 Kg | 2880 | M.S & S.S – 304 | 10' x 10' x 8' |
| 8" x 10" | 10" x 22" | 40 HP | 300 – 400 Kg | 2880 | M.S & S.S – 304 | 10' x 10' x 12' |
| 8" x 10" | 10" x 24" | 50 HP | 400 – 500 Kg | 2880 | M.S & S.S – 304 | 12' x 12' x 12' |
